Fire control and suppression systems
eFP-600 for lithium-ion battery fires
eFP-600 for lithium-ion battery fires
The eFP-600 system consists of water + 3% Cold Fire additive. This additive is considered next-generation due to its Triple Suppression Technology: it acts as a wetting agent, encapsulating agent, and inhibitor. Fire suppression is achieved through multiple mechanisms: reducing the surface tension of water, encapsulating the heat source and fuel, inhibiting the chain reaction, and enhancing the cooling capacity of water.
Cold Fire acts as a wetting agent, reducing the surface tension of water to one-third of its original value and increasing its cooling capacity by allowing greater contact and improved heat energy absorption.
The additive spreads much faster.
It penetrates materials and fire up to six times more effectively.
It produces smaller droplets.
Cold Fire works by forming micelles at the molecular level, encapsulating molecules of flammable liquids and vapors and transforming them into non-flammable substances.
It also encapsulates smoke generated during a fire, improving visibility and breathing conditions for response teams when intervention is required.
It acts as an inhibitor of the chain reactions that sustain combustion. Fire propagation is driven by chain reactions that release large amounts of energy in the form of heat in an exothermic cycle.
By consuming energy and reducing the temperature below the ignition point, the exothermic cycle is broken and the combustion chain reactions are inhibited.
It is a 100% biodegradable and environmentally safe agent. eFP-600 systems with Cold Fire additive are the only ones on the market with four certifications (DITE), and we are continuously working on new solutions.
• Portable fire extinguishers
• Fire hose reels (FHRs)
• Automatic sprinklers
• Parking systems for electric bicycles
LITHIUM-ION BATTERY FIRES
eFP-600 EXTINGUISHER SYSTEM
Applus+ Extinguisher Test
The eFP-600 extinguisher system is designed for rapid response in suppressing lithium-ion battery fires. Its high mobility and ease of use allow for controlled, effective, and targeted application, making it ideal for environments with electronic devices, electric scooters, and similar equipment. Tested in accordance with NTA 8133 guidelines.
LITHIUM-ION BATTERY FIRES
eFP-600 FHR SYSTEM
Applus+ FHR Test
System housed in a double cabinet with two 20-liter tanks of Cold Fire additive. Featuring Triple Suppression Technology, it is specifically designed for protection against lithium-ion battery fires.
Includes: hose reel with hose, professional nozzle, proportioner with fixed 3% Cold Fire additive dosing, shut-off valve, and pressure gauge.
FOR FIRE PROTECTION IN ELECTRIC VEHICLES
eFP-600 AUTOMATIC SPRINKLER SYSTEM
Applus+ Automatic Sprinkler Test
Fire suppression system specifically designed for parking areas with electric vehicles, in accordance with UNE EN 12845 standards. Equipped with ½” K80 nozzles, with an activation temperature of 68°C and a coverage area of 10.5 m² per nozzle. Fixed proportioner set at 3%.
IN ELECTRIC BICYCLE PARKING AREAS
WATER MIST WITH 3% ADDITIVE ACTIVATED BY TEMPERATURE
Applus+ Autonomous System P4BF Test

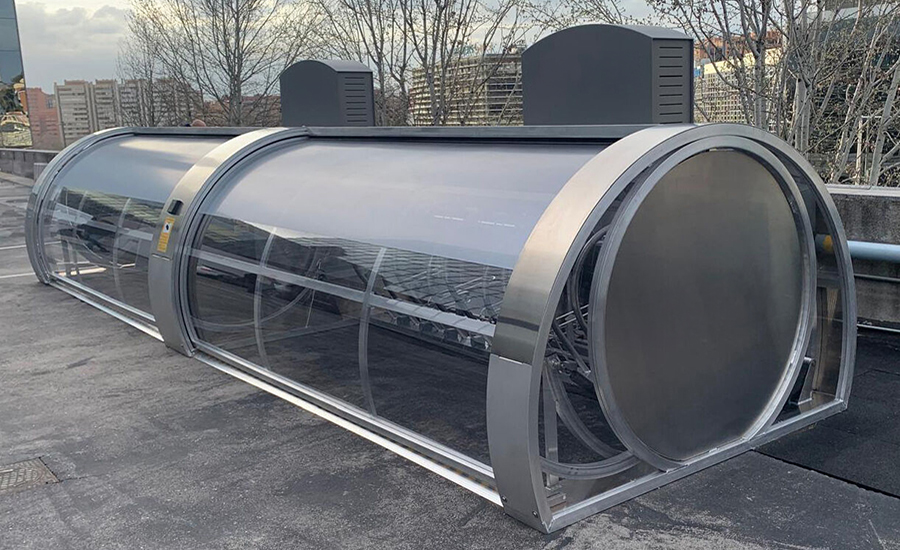

This is a parking system for electric and conventional bicycles with an integrated fire suppression system that ensures protection in case of ignition. The system is specifically designed for lithium-ion battery fires.
It features an automatic fire detection system activated by temperature. Once triggered, the suppression action is based on a mixture of water mist and UL-certified Cold Fire additive at 3%.
